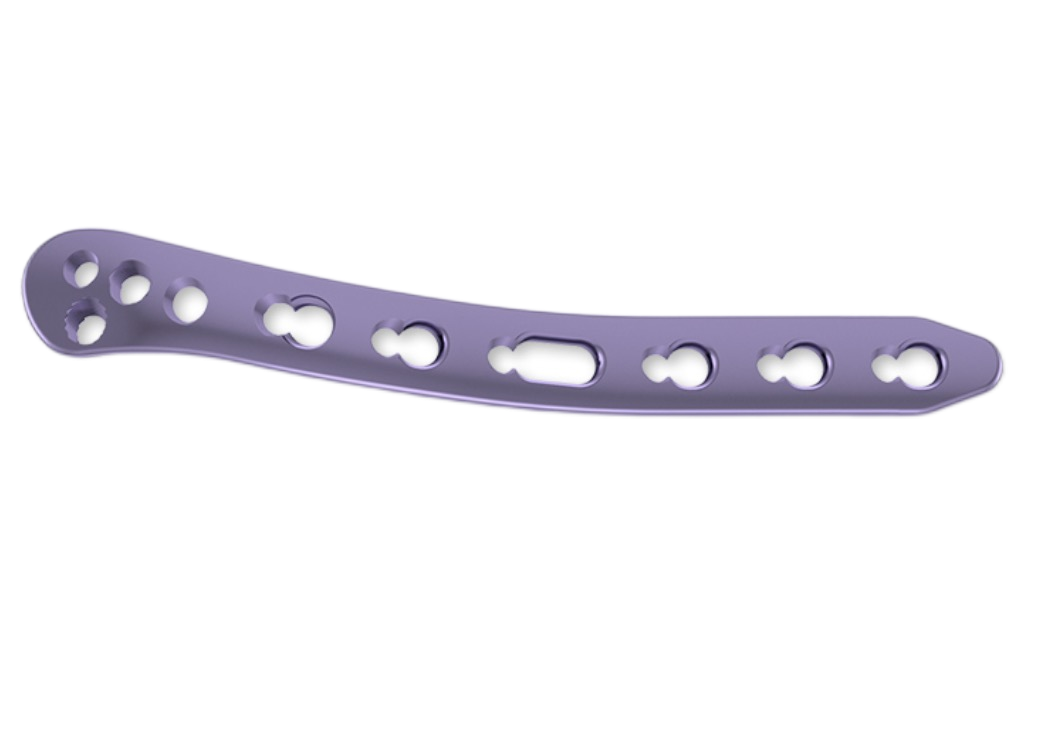

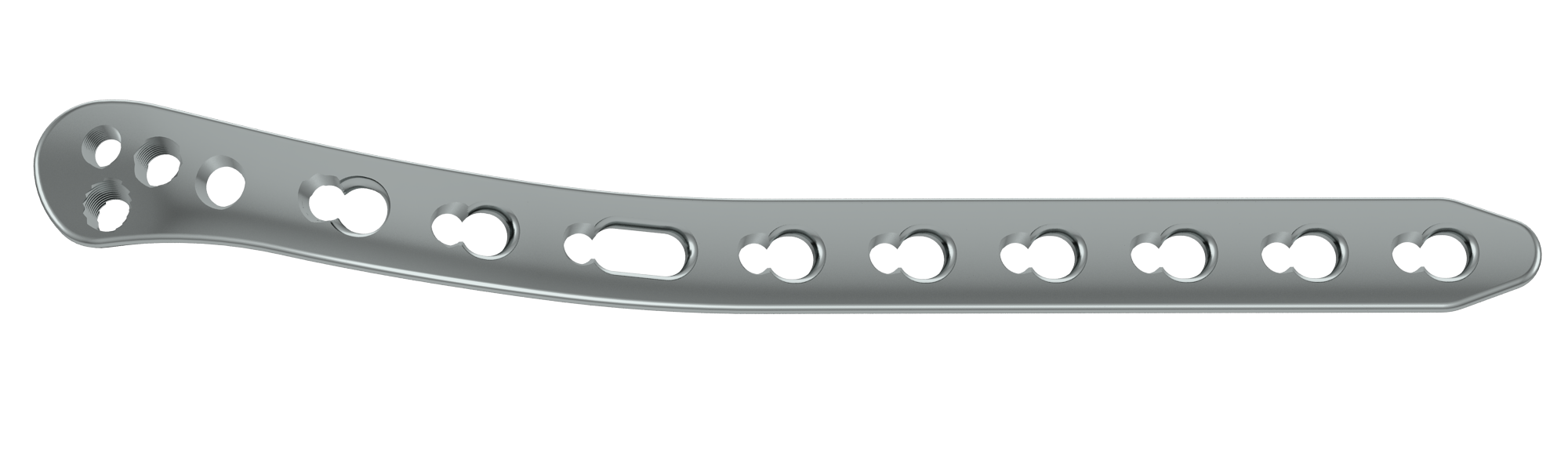

Distal Humerus lateral Locking plate A
Distal Humerus Lateral Locking Plate A |
Thickness: 2.5mm Holes Spacing: 13mm Material: Titanium |
Distal Humerus Lateral Locking Plate A |
Thickness: 2.5mm Holes Spacing: 13mm Material: Titanium |
Product Name | Code | Specification | Length (mm) | Matched Screw |
Distal Humerus lateral Locking plate A | 5606303/22 | 4 Holes Left/Right | 81 | Cortical Screw 3.5 Locking Screw 3.5 Locking Screw 4.0 |
5606305/24 | 6 Holes Left/Right | 107 | ||
5606307/26 | 8 Holes Left/Right | 133 | ||
5606308/28 | 10 Holes Left/Right | 159 | ||
5606311/30 | 12 Holes Left/Right | 185 |
Note: choose HC3.5, HC4.0, HA3.5 screws, used for distal humerus fixation. (illustration show 6 holes left)
